FRP (GRP) Skin Foam Core Sandwich Panels
- Feature：Water Resistant, Fire Resistant
- Application：Truck and Trailer Van Body, Wall panel etc
- Material：frp
- Warranty：3 Years
- After-sale Service：Return and Replacement
- Model Number：XPS Sandwich Panel
- Place of Origin：Guangdong, China
- Brand Name：Foreth
- Type：FRP sheet & FRP composite sheet
- Thickness;10-100mm
- Width:<2500mm
- Length:<12000mm
- Density；Customized
- Tensile strength：124MPa
- Bending strength：195.8MPa
- Service;Cutting and Free sample
Typical Features of Fiberglass Foam Core Panels
- Thermal insulation: The thermal conductivity of the closed-cell foam core material is low, which can effectively keep the temperature inside the panel in a constant range.
- Lightweight: The density of fiberglass sheet and foam board is very low, and the lightest foam core can even reach 30~40kg/m³.
- High strength: Fiberglass sheet is famous for its strength and toughness, and the foam panel can effectively offset the general impact force.
- Waterproof and moisture-proof: the water absorption rate of closed-cell foam is extremely low, while FRP basically completely isolates water.
- Easy to cut: This is a huge advantage of fiberglass foam core panels compared to metal composite panels, which greatly facilitates processing, such as cutting and drilling.
Specifications

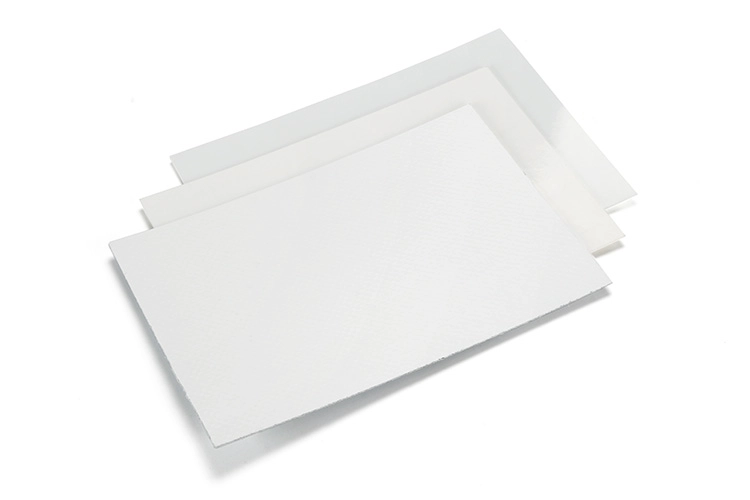

| Skin Materials | FRP (GRP – fiberglass reinforced plastic) Sheets. (Thermoset resin) CFRT (Continuous fiber-reinforced thermoplastic) Sheets. (Thermoplastic resin) |

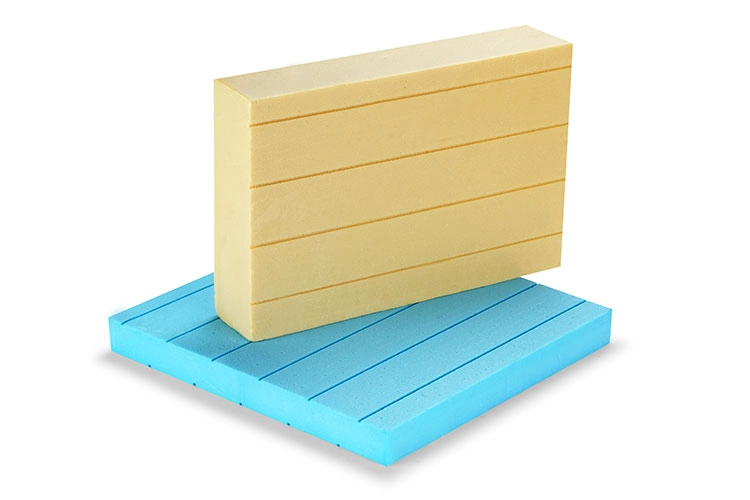

| Core Materials | XPS (Extruded Polystyrene) Foam. PVC (Polyvinyl Chloride) Foam. PU (Polyurethane) Foam. PET (Polyethylene Terephthalate) Foam. |
| Width | ≤ 3.2m |
| Total Thickness | 10-150 mm |
| Length | ≤ 12m |
| Core Density | 30-300 kg/m³ |
| Surface Color | RAL Color Series |

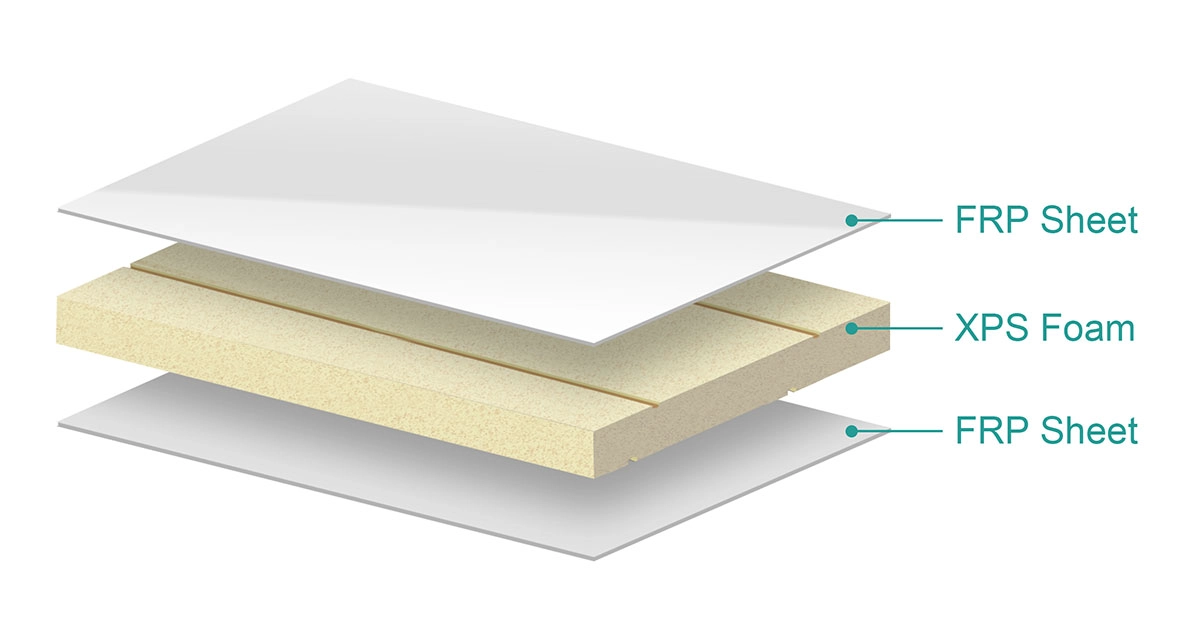

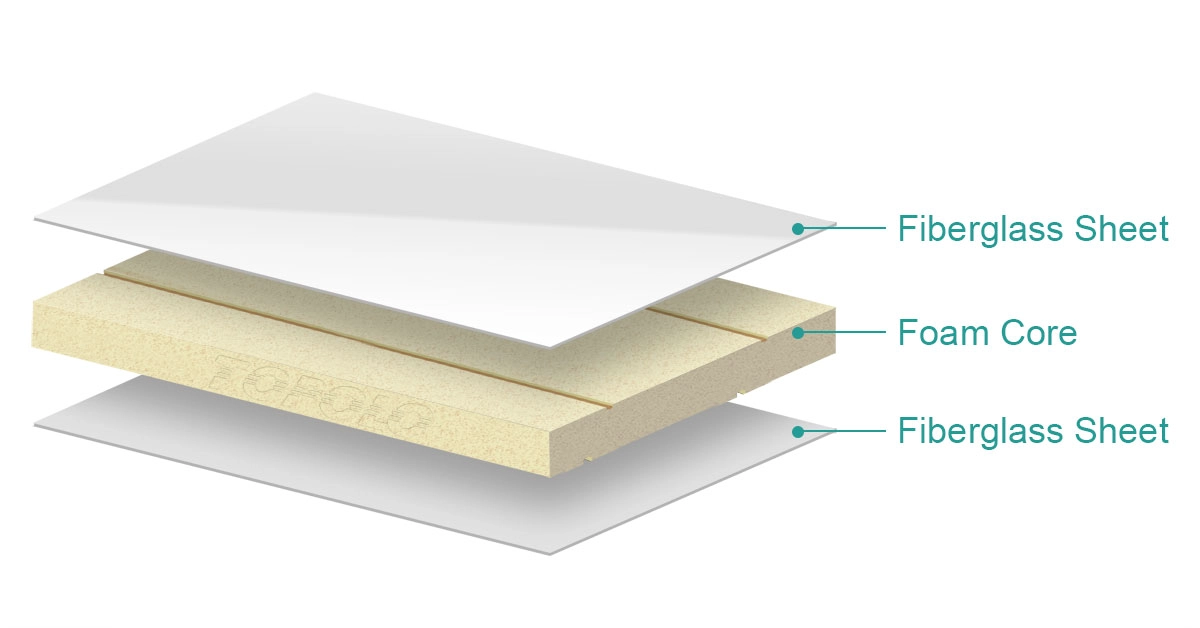

Structure of Fiberglass Foam Core PanelsMost fiberglass foam core panels feature a three-layer sandwich structure of “skin-core-skin,” manufactured through lamination with high-strength adhesives. The finished panels have a smooth and flat surface. |
 |
Common Applications
As a new type of composite material, the performance of fiberglass foam sandwich panels is far superior to that of solid composite panels, because of their excellent performance, it is used in many industries, such as RV, trucks, trailers, buildings, boats, furniture and other industries. It greatly enhances the performance of these products and greatly reduces production costs.
 |
 |
|

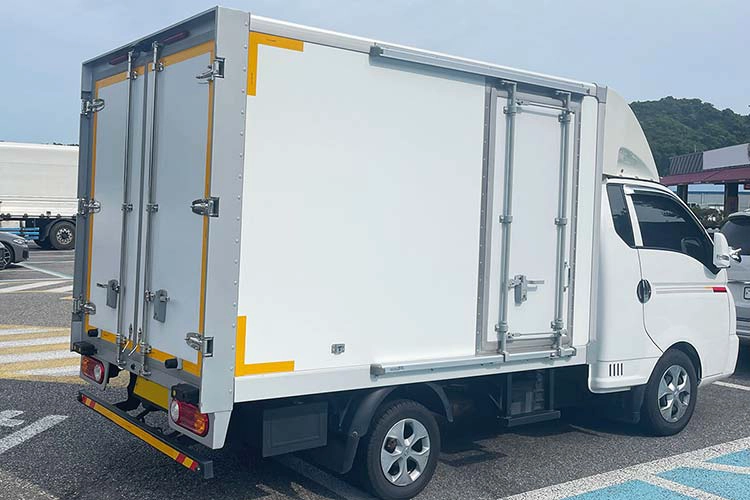

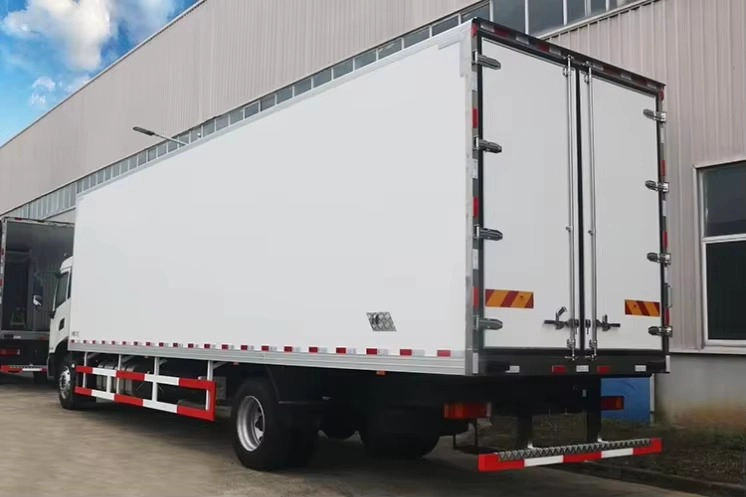

Box-type Commercial Vehicles
|

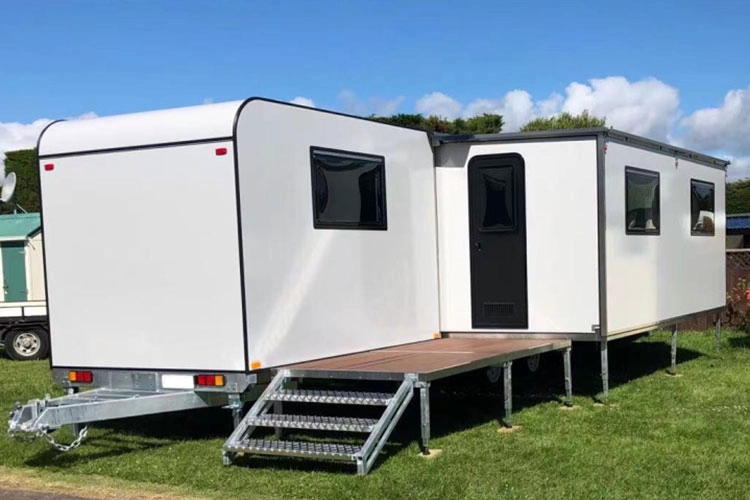

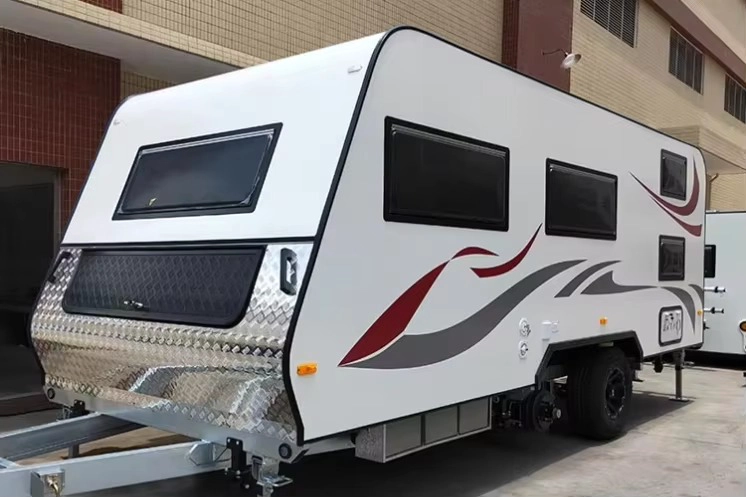

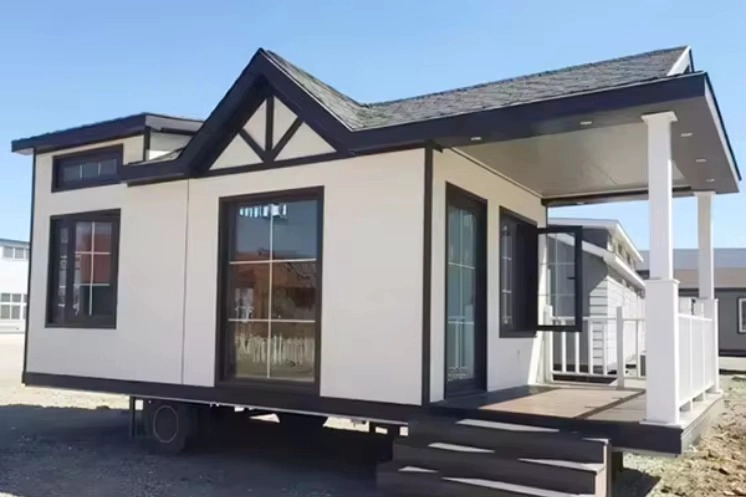

RVs
|
 |
 |
|

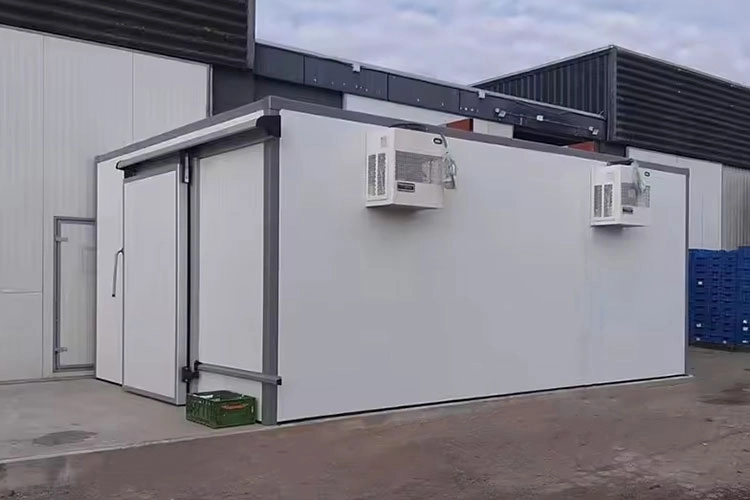

Buildings
|
Marine
|
