Freezer Truck with Fiberglass Body Box Refrigerated Panel Sandwich Composite Panels for Travel RV or Truck Box

  • Material:Steel
  • Panel Material:Nonmetal
  • Feature:Water Resistant, Fire Resistant
  • Application:Truck Box / Caravan / Trailer
  • Thickness range:10mm-100mm
  • Width:upto 3.2m
  • Length:max 16.5m
  • Surface treatment:Smooth gelcoat
  • Raw material:fiberglass,resin,additives
  • Technology:once-shaping machining sheet
  • Use:for decoration and van
  • Packing:with a removable plastic film
  • back side:can be sanded
  • Single package size:10X20X75 cm
  • Single gross weight:3.000 kg

A. FRP Sandwich Panel

Also know as GRP/FRP composite panel, which structure is FRP skin + core material + FRP skin.

FRP composite panel is a high-tech, high-quality new sheet, it does not occur in the ultra-low temperature of 40 degrees brittle crack, high temperature below 100 degrees will not be deformed, and can prevent heat transfer.

FRP composite panels can replace color steel plate, aluminum, etc., and to overcome the traditional products rust, corrosion, easy to depression deformation, can not adapt to harsh environments and other shortcomings.

FRP composite board with gel coated, can be self-cleaning, anti-UV, anti-static, etc., is the most popular international  truch body and van panel.



B. FRP Sandwich Panel Features

>> High mechanical strength and good impact toughness;
>> Roughness surface and easy to clean;
>> Corrosion resistance, wear resistance, yellowing resistance, anti- aging;
>> High temperature resistance;
>> No deformation, low thermal conductivity, excellent insulation properties;

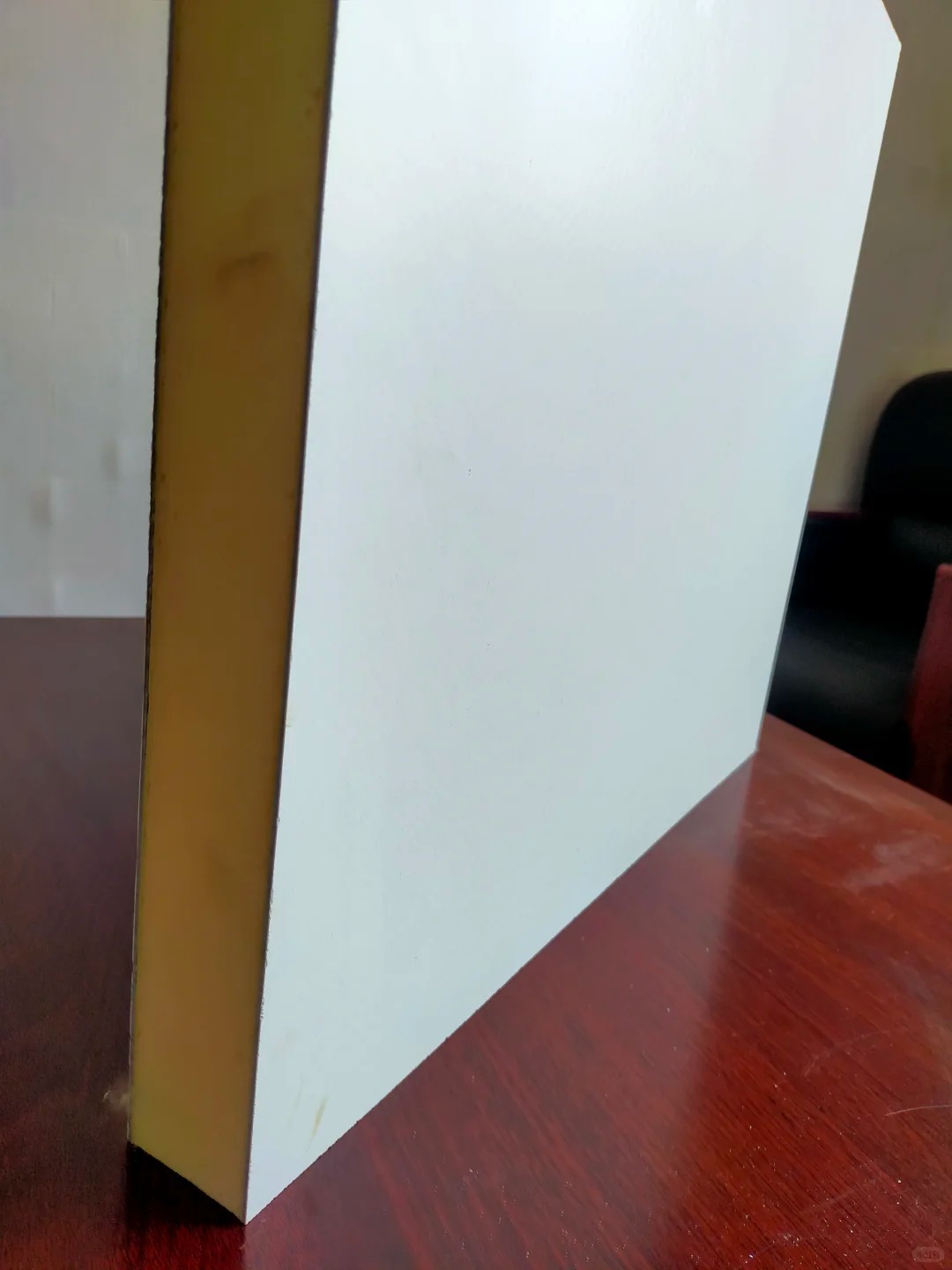

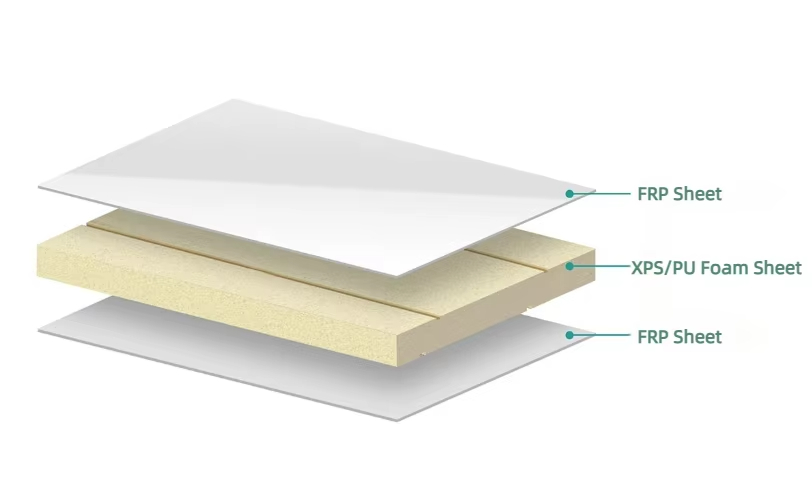

Item FRP XPS composite panel
Core Material XPS foam,Extrude Polystyrene
FRP skin 1.0-3.0MM
Core 10-100MM
Witdth Max 2500MM
Length Max 12000MM
Color White/colored

Thickness (mm) Weight(kg/㎡)
50 8.35
60 8.7
70 9.05
80 9.4





Main Performance data

No

Item

Test results

Test method

1

Flat compressive strength

≥0.25MPa

GB/T1453

2

Edgewise compressive strength

≥2.0MPa

GB/T1454

3

Tensile strength

≥0.75MPa

GB/T1452

4

Barcol hardness

≥42

GB/T3854

5

Thermal conductivity

≤0.03W/m.k

GB/T10295

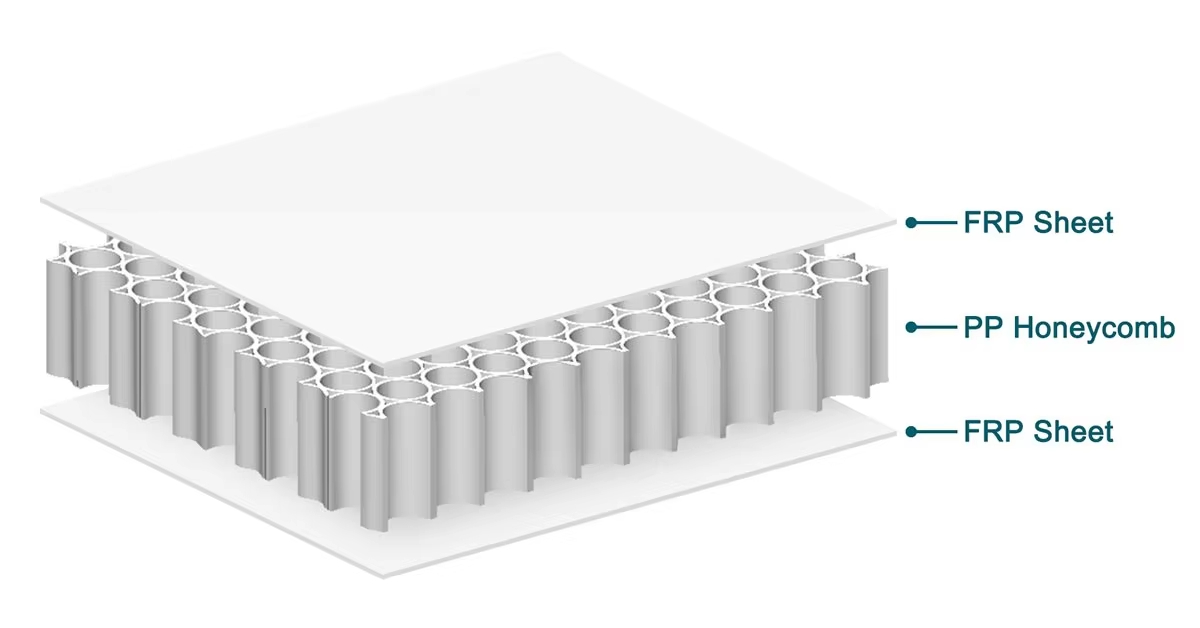

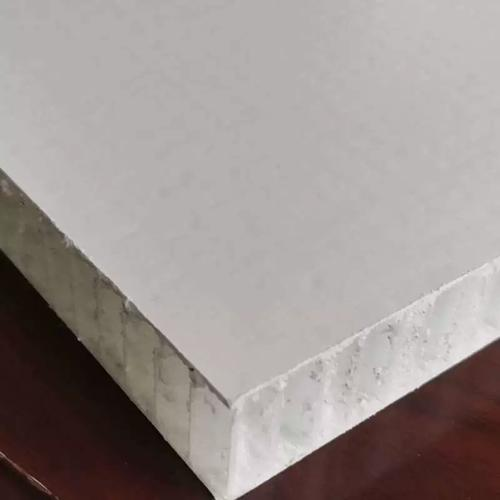

Item FRP PP composite panel
Core Material PP Honeycomb
FRP skin 1.0-3.0MM
Core 5-100MM
Witdth Max2500MM
Length Max 12000MM
Color White/colored

Thickness (mm) Weight(kg/㎡)
15 7.5
18 8
21 8.5



Main Performance data

No

Item

Test results

Test method

1

Static strength

≥25MPa

GB/T17657

2

Elastic modulus

≥2000MPa

3

Flat compressive strength

≥1.2MPa

GB/T1453

4

Edgewise compressive strength

≥10.5MPa

GB/T1454

5

Tensile strength

≥0.5MPa

GB/T1452

6

Barcol hardness

≥42

GB/T3854

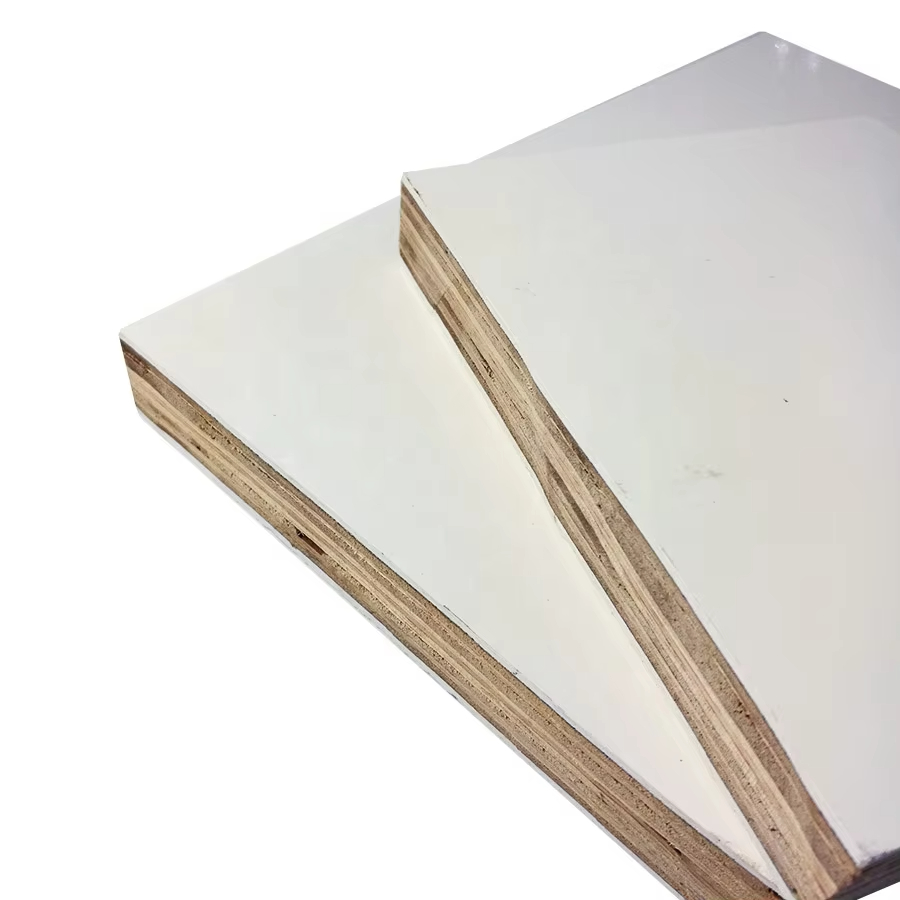

Item FRP Plywood composite panel
Core Material Plywood
FRP skin 1.0-3.0MM
Core 3-20MM
Witdth Max 1220MM
Length Max 2440MM
Color White/colored

Thickness (mm) Weight(kg/㎡)
15 12
18 14
21 16
