New Premium Growing Tray 4x8 Flood Trays Ebb and Flow System Rolling Bench Grow TablesNew Premium Growing Tray 4x8 Flood Trays Ebb and Flow System Rolling Bench Grow TablesNew Premium Growing Tray 4x8 Flood Trays Ebb and Flow System Rolling Bench Grow Tables

New Premium Growing Tray 4x8 Flood Trays Ebb and Flow System Rolling Bench Grow Tables

  • Size:Large
  • Type:Multi-Span Agricultural Greenhouses
  • Cover Material:Steel
  • Place of Origin:Guangdong
  • Brand Name: Forethgrow
  • Name:Growing Tables Commercial Plants Wire Mesh Greenhouse Bench
  • Product name:ebb and flow rolling bench
  • Color:Silver
  • Material: Galavnized Steel
  • Application:Vegetable Fruits Flowers Strawberry
  • Advantage:Environment Friendly
  • Usage:Vegetables Growing
  • Length: Customizable Size
  • Features:Convenient
  • Item: Agricutural Growing

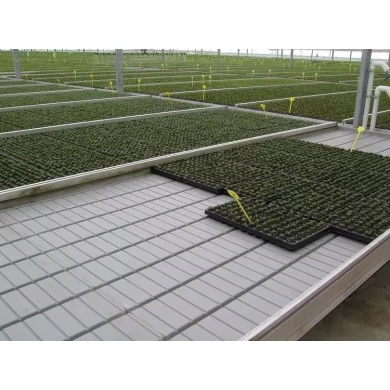

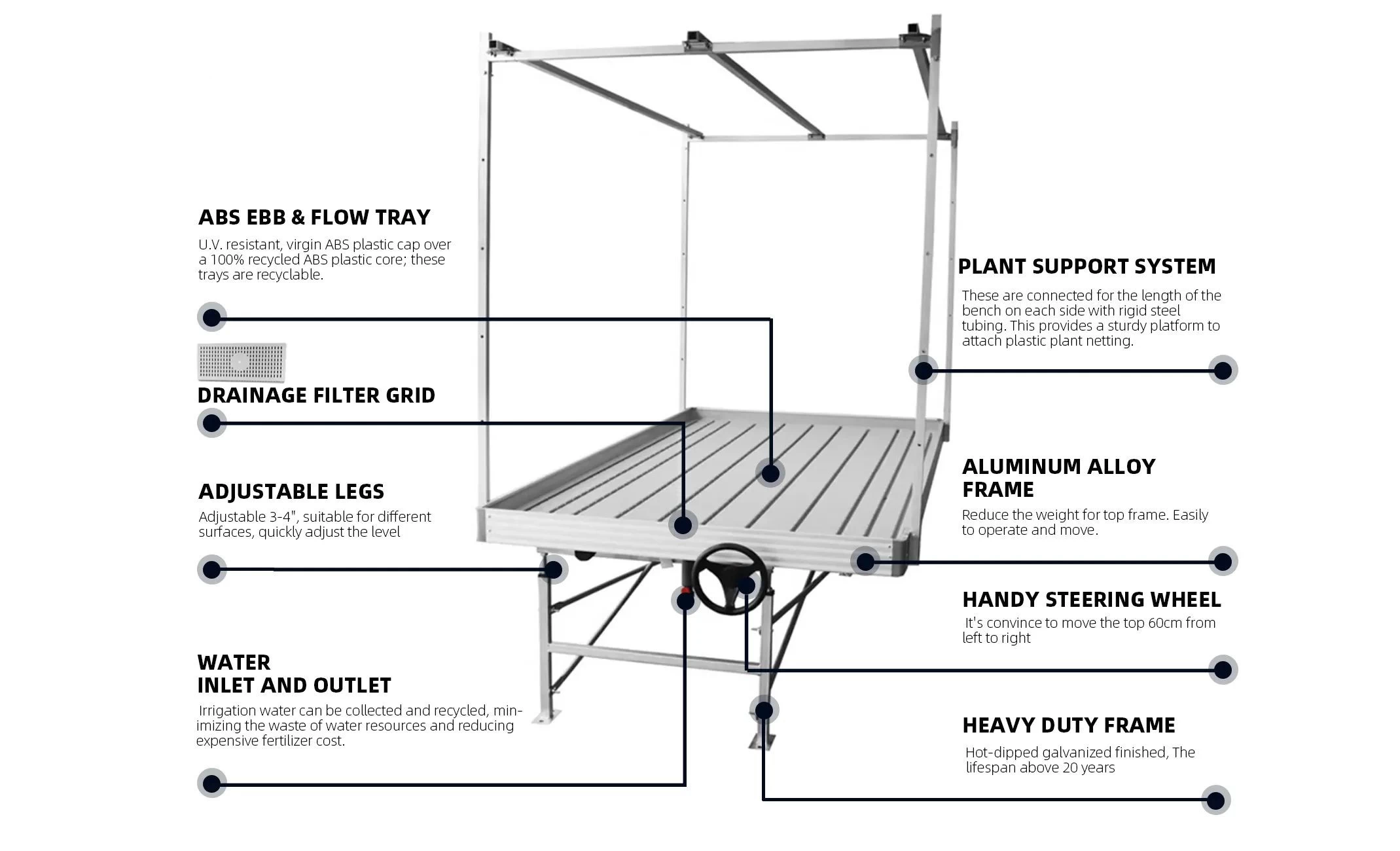

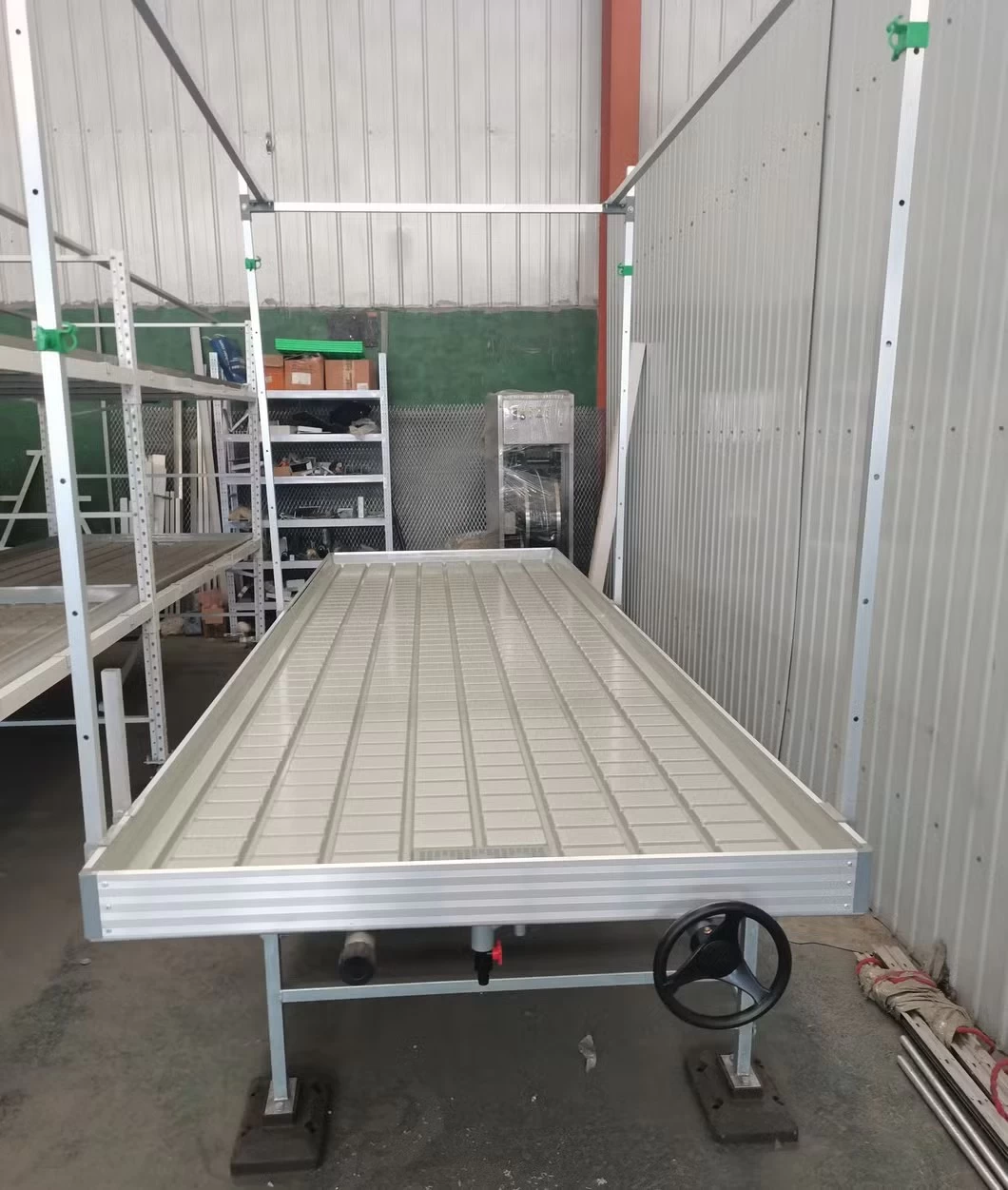

Ebb and flow benches, also known as ebb and flow tables, flood and drain tables, or flood benches, are an increasingly popular greenhouse bench for propagating seedlings and hydroponic growing in modern times.


It is specially equipped with an ebb and flow system made of ABS bench trays that are molded with a network of drainage channels.This unique structure allows nutrient-rich water pumped from the reservoir watering all plants evenly throughout the entire surface of the greenhouse bench and then draining completely when the watering is finished. The water then returns to the reservoir under gravity for recycling.

Ebb and flow benches help you save both labor and nutrient-rich water while ensuring seedlings grow strong and vigorous.

Specification-Rolling Bench
Middle Section size
W122cmx200cm/W4'xL6.56'
The Frist section size
W122cmx220cm/W4'xL7.22'
Material
Coated steel
The Last section  size
W122cmx220cm/W4'xL7.22'
Height
75cm/2.46'+extra upright, height customizable.
Color of Rack
White and green
Load Capacity
200kg Max/rack section
Way of moving
Rolling

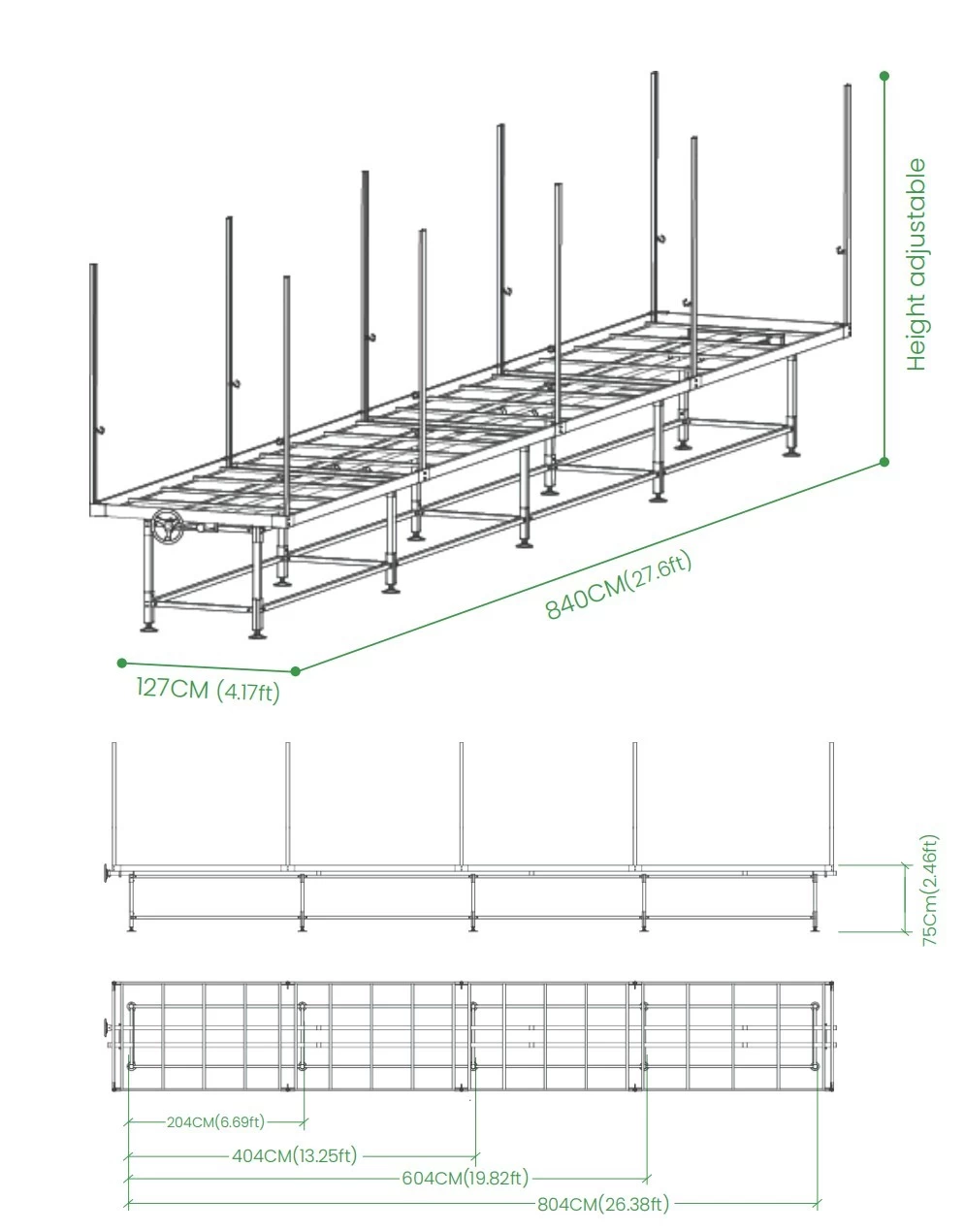

Data of GRB Models
Model Code
GRB3
GRB4
Overal Dimension
127*640*75CM/4.17*21*2.46FT
127*840*75CM/4.17*27.6*2.46FT
NetGrow Area
8.1m2/88 sq ft
10.67m2/115 sq ft
Footprint Area
8.1m2/88 sq ft
10.67m2/115 sq ft
Rack Sections
3
4



Model Code
GRB5
GRB6
GRB7
Overal Dimension
127*1040*75CM/4.17*34.1*2.46FT
127*1240*75CM/4.17*40.7*2.46FT
127*1440*75CM/4.17*47.2*2.46FT
NetGrow Area
13.2m2/142 sq ft
15.7m2/170 sq ft
18.3m2/197 sq ft
Footprint Area
13.2m2/142 sq ft
15.7m2/170 sq ft
18.3m2/197 sq ft
Rack Sections
5
6
7

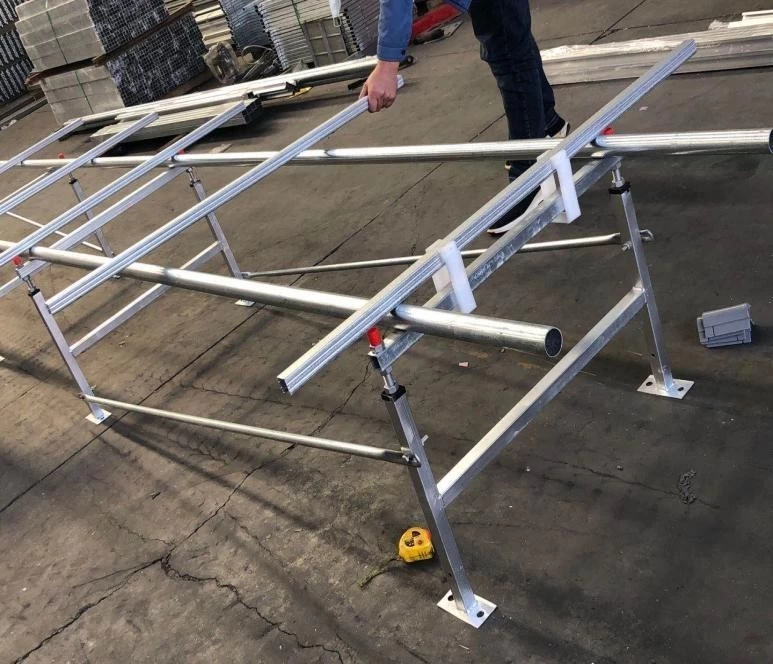

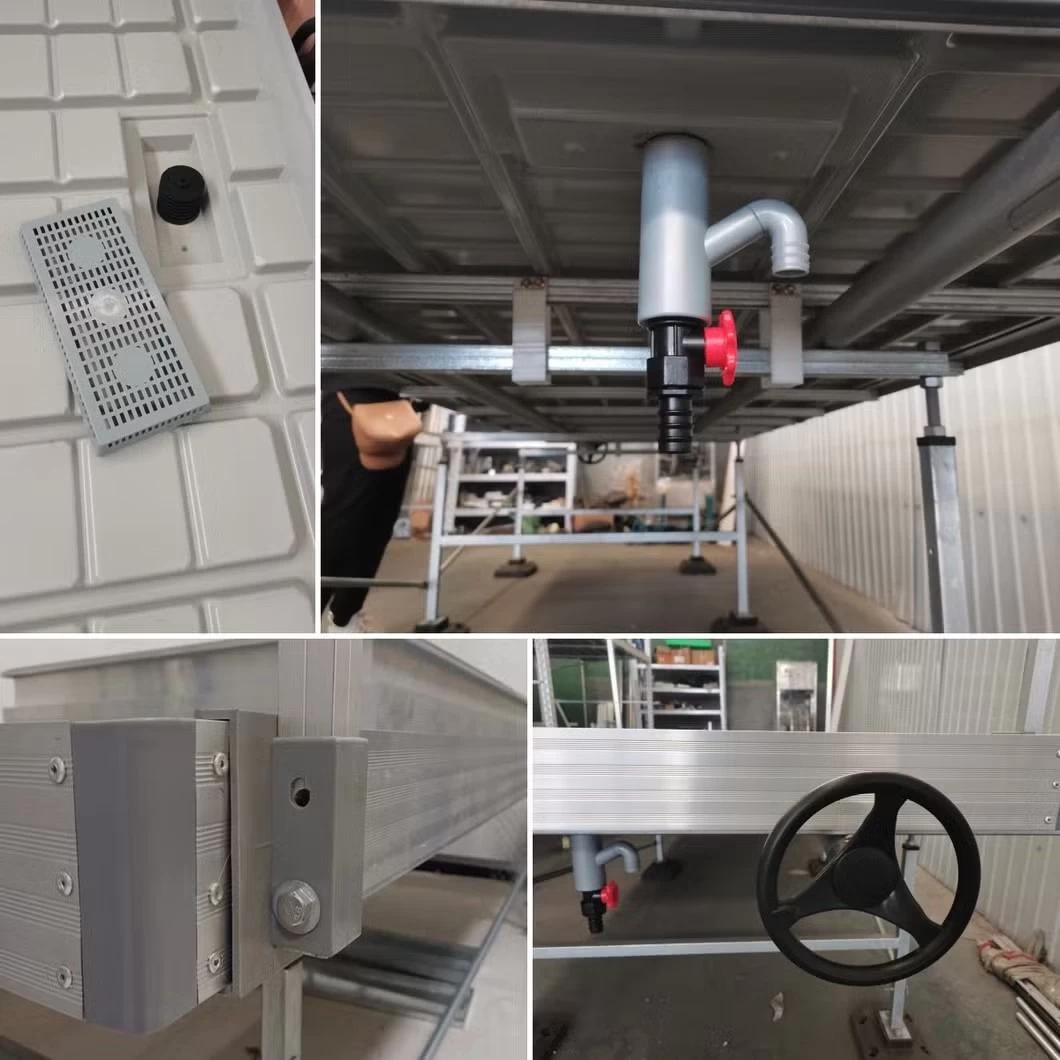

Support frame

With screw design, it is possible to adjust the level of the seedbed through the screw.

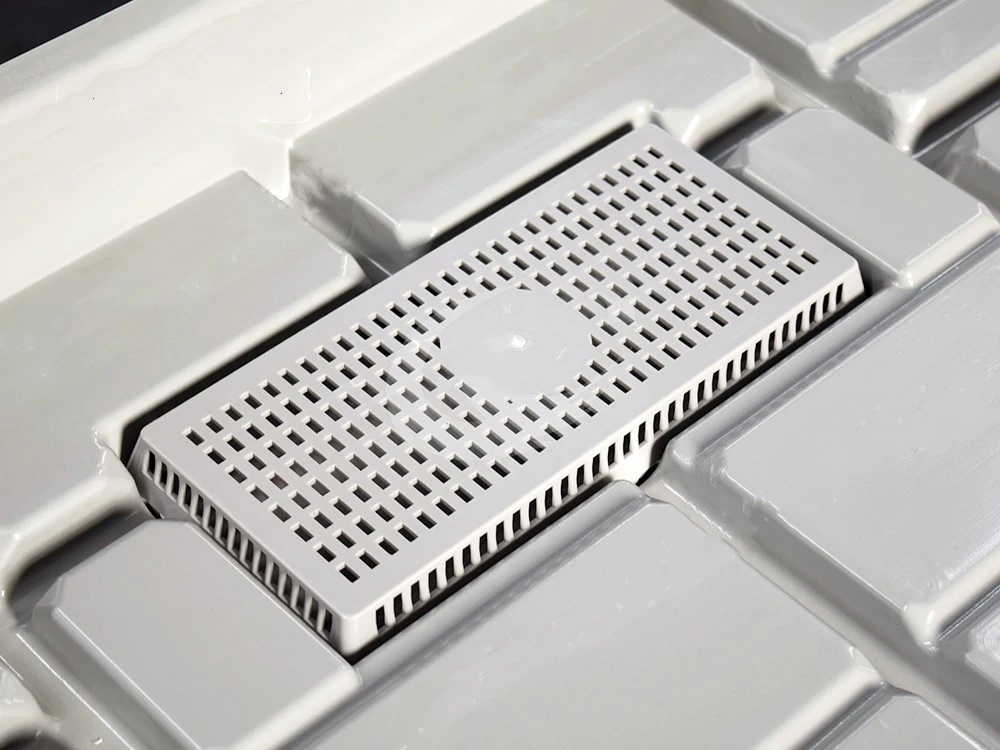

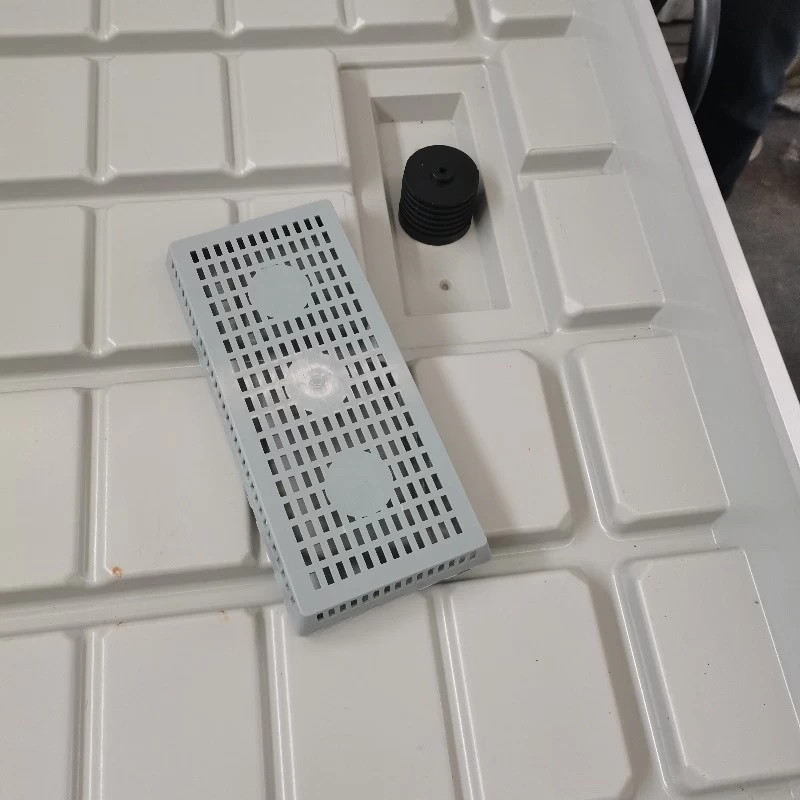

Filter

Install a filter at the inlet and outlet to filter the backwater

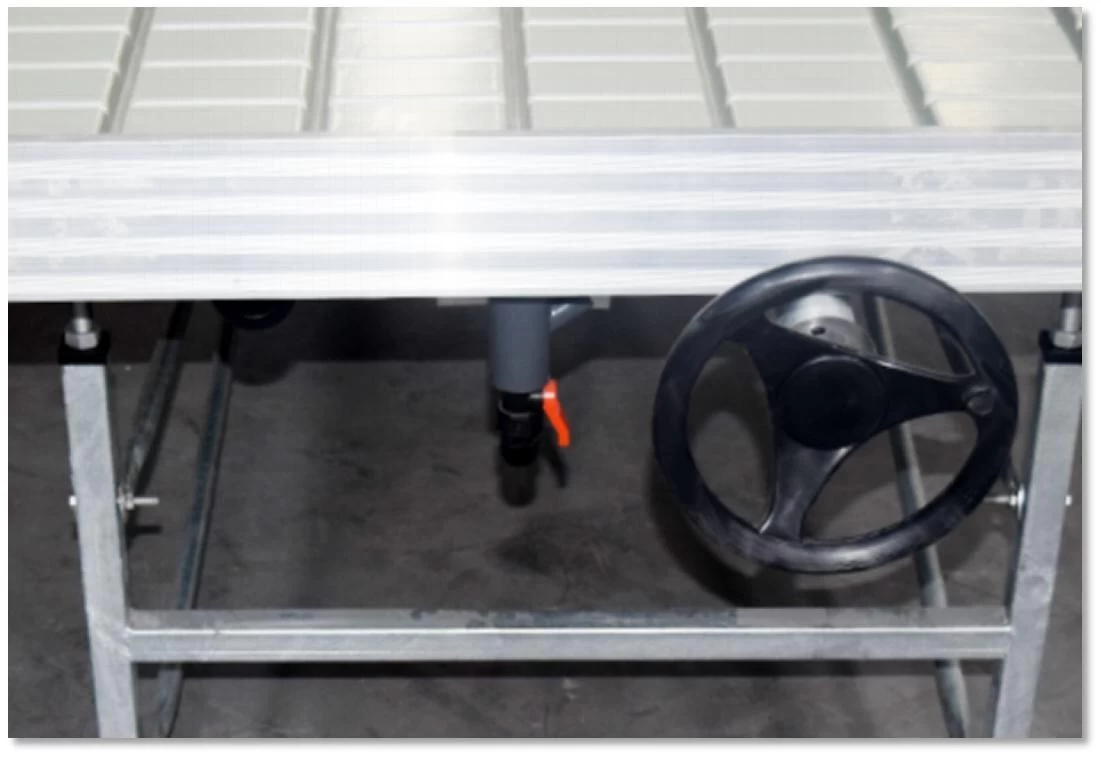

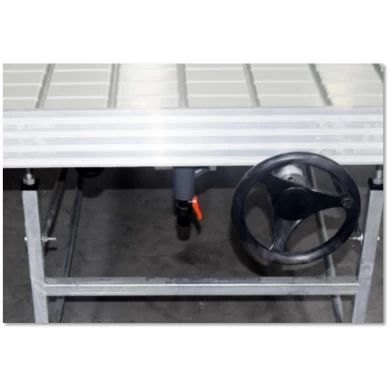

Handwheel

Plastics-pp, Control rotation speed

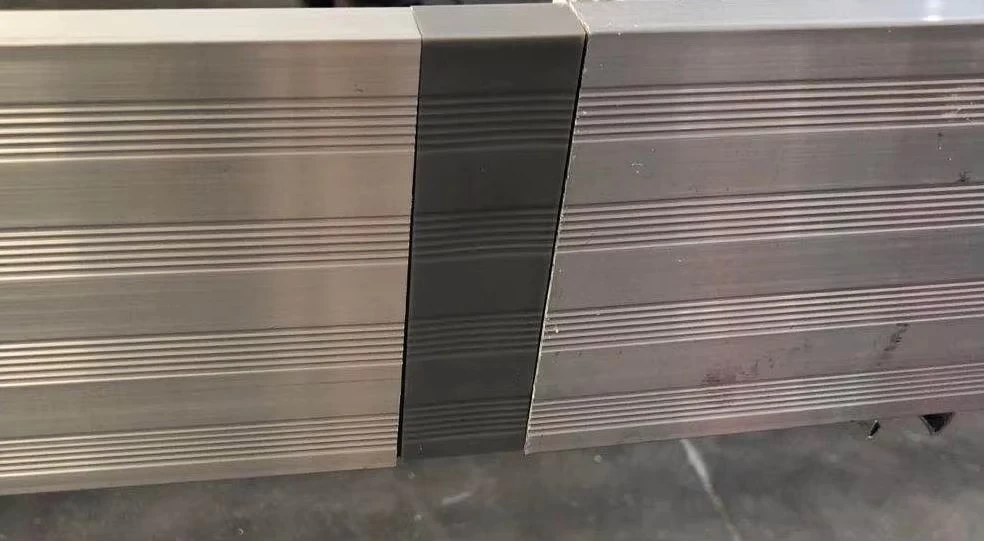

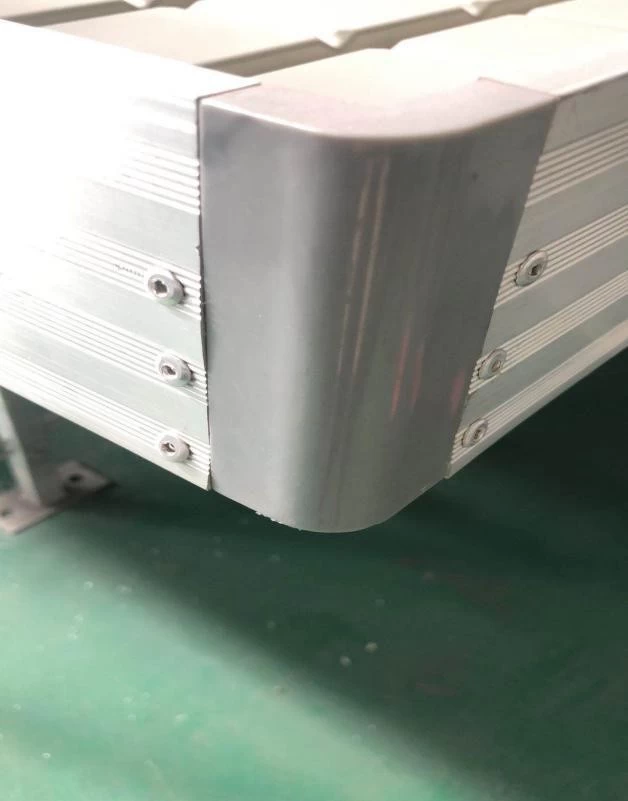

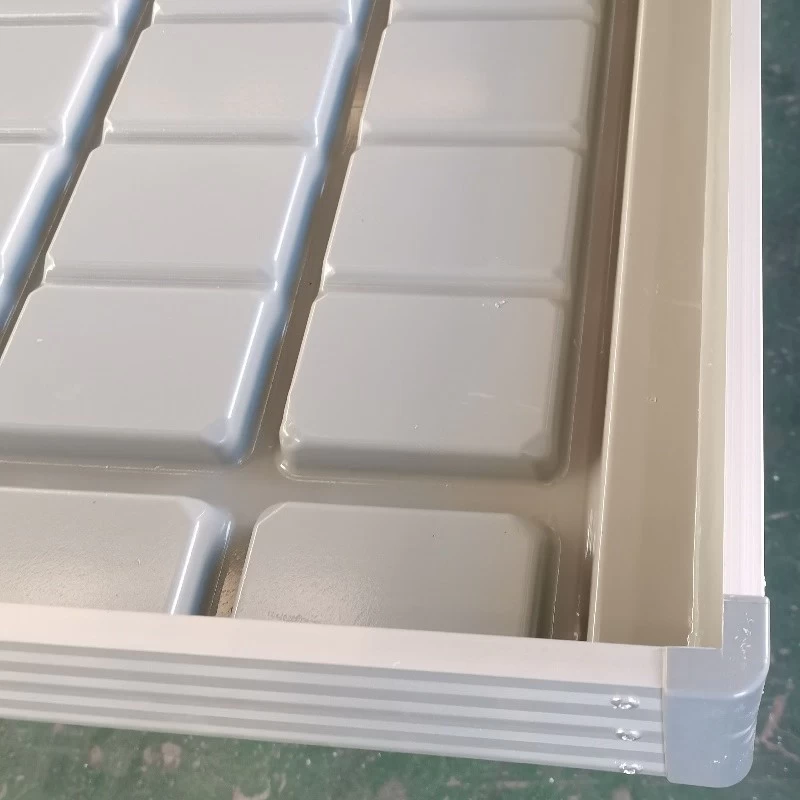

Corner connector

Used for corner connection of aluminum alloy profile

Corner connector

Used for corner connection of aluminum alloy profile

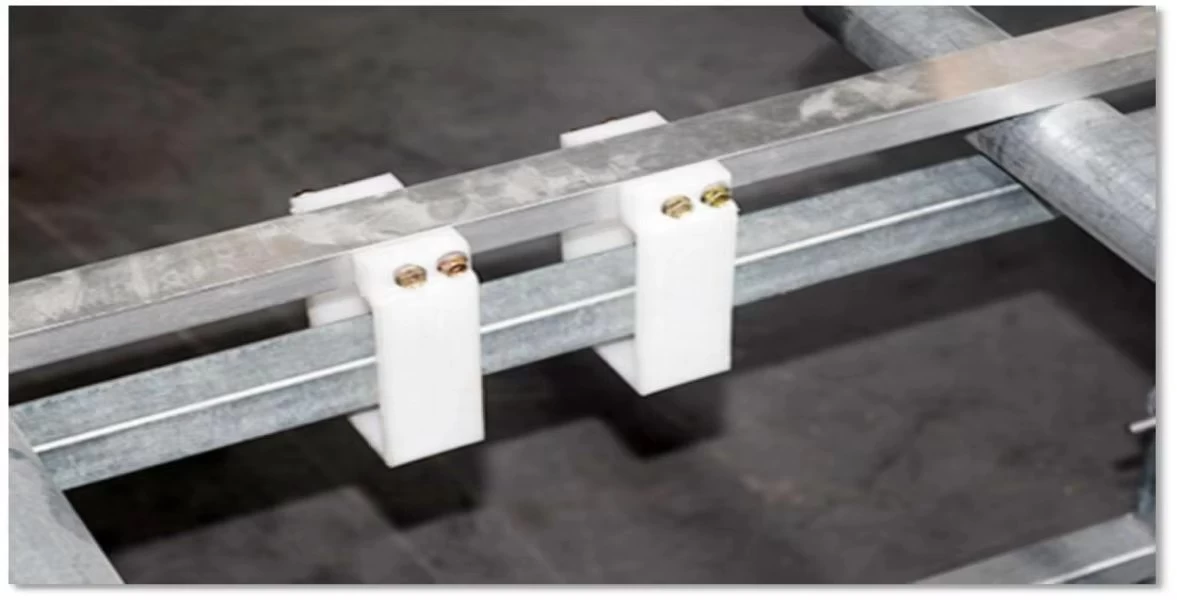

Anti-Overturn hook

Prevent the seedbed from tilting



Specifications

Name
ebb and flow rolling bench
Standard tray Size
4*8ft(1.22m*2.44m)
5*5.6ft(1.53m*1.7m)
5.4ft×11.8ft(1.65m×3.6m)
5.6*14.6ft (1.7*4.45m)
All bench width
width 2.3ft,3ft, 4ft, 5ft, 5.6ft, 5.83ft, splice any length (customized)
Bench Standard height
About 70cm, can adjust 8-10c(other height can be customized)
Move distance
Move 25-30cm(each side)
Material
ABS tray
Aluminum alloy frame
Hot galvanized leg
UV protective ability
Yes
Color
White, Gray or Black
Load Range
45-50kg/m2



OEM

ODM/OEM Available !!!


>> If you have 3D drawings, we can help check and improve, then make molds based on it.

>> If you have actual samples, we can help you copy it for free.

>> If you have 2D drawing or photos, we can help you make 3D drawings for free.

>> If you only have ideas, we can help you draw out for free.

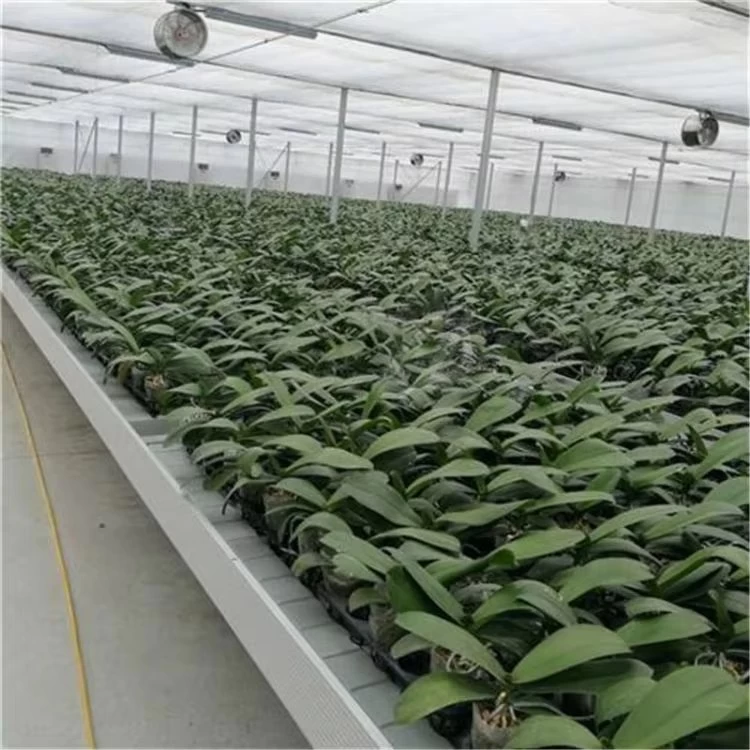

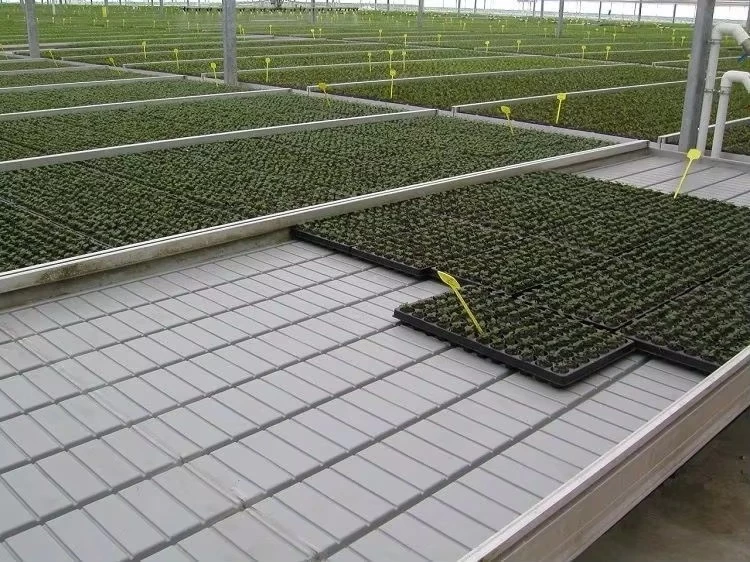

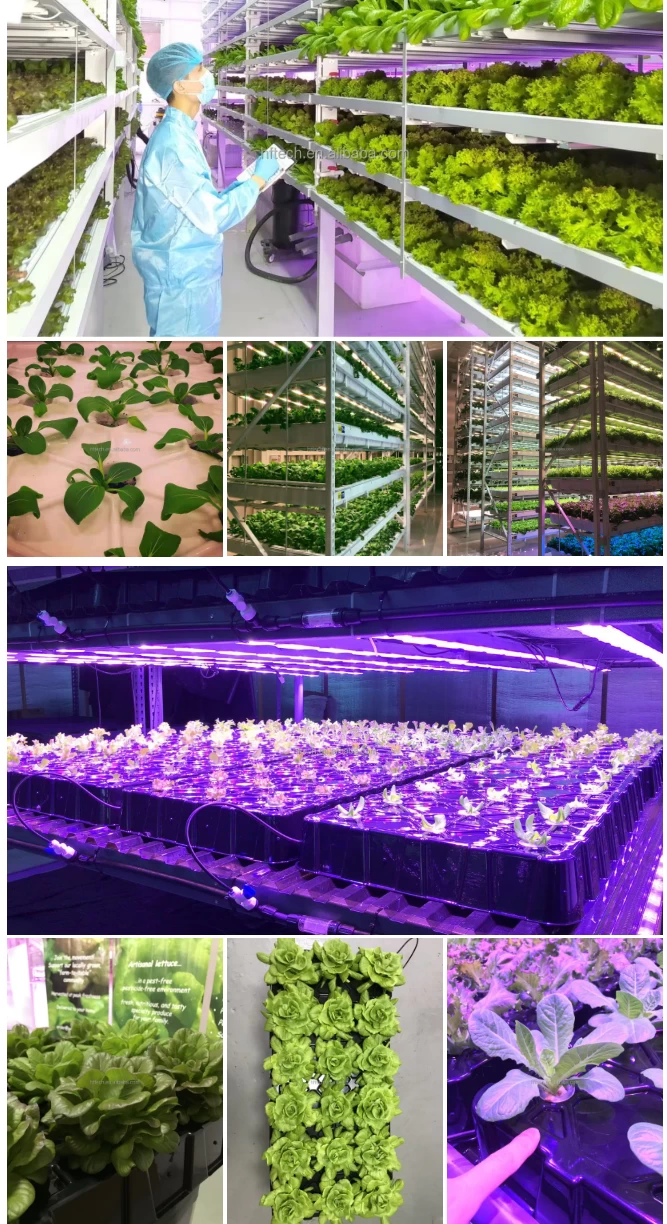

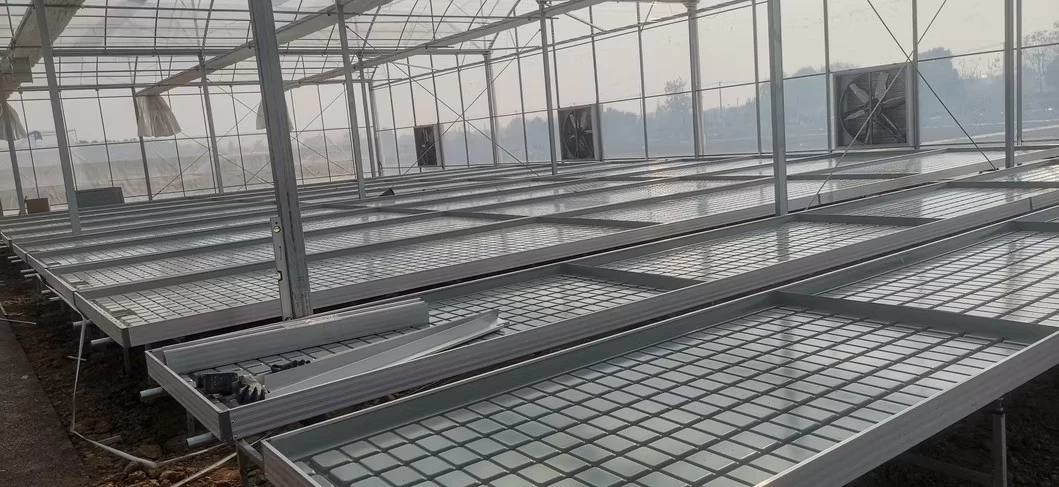

Project Display
