ABS Plastic Infinite Ebb Flood Drainage Tray Planting Lids for 2x4 2x10 Grow Rack Table Agricultural GreenhousesABS Plastic Infinite Ebb Flood Drainage Tray Planting Lids for 2x4 2x10 Grow Rack Table Agricultural Greenhouses

ABS Plastic Infinite Ebb Flood Drainage Tray Planting Lids for 2x4 2x10 Grow Rack Table Agricultural Greenhouses

  • Size:Large
  • Type:Plastic Shed
  • Instruction for use:agricultural
  • Cover Material:plastic
  • Model Number:customized
  • Product name:Hydroponic Trays
  • Material:ABS Plastic
  • Color:White, Black, customized
  • Width:620mm,1200mm or customized
  • Hieght:80mm or customized
  • Thickness:3-8mm, customized
  • Process:Vacuum Forming
  • Usage:Grow Leafe Vegetables
  • Service:OEM or ODM
  • Package:Carton/Plywood pallet

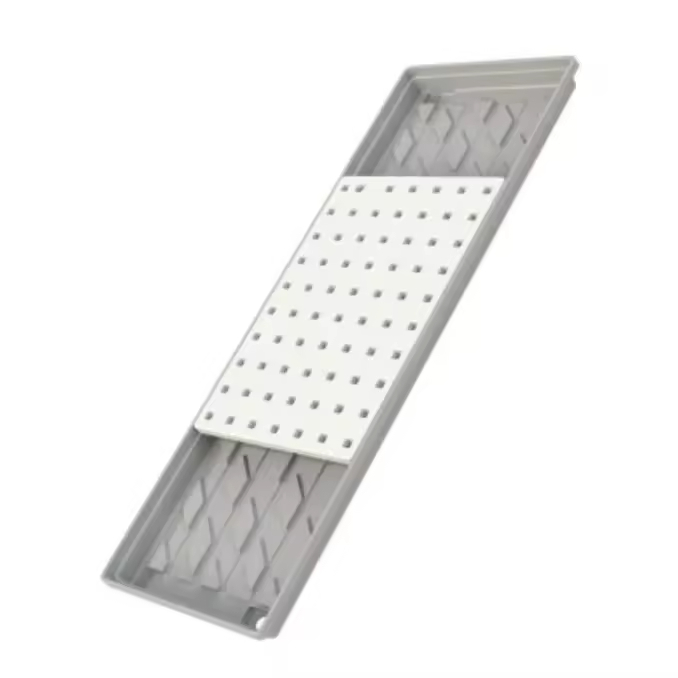

Infinity Series trays are designed specialized for ebb and flow rolling bench system and urban vertical farming system, a simple grow tray maximize your planting and installation efficiency, allowing the grower to maximize utilize every inch of the grow space.



Infinity Trays are composed of Head tray + Mid tray + End tray, which designed to easily connect multiple trays together, end-to-end. There are male and female end designs, the female end underlap nests under the male overlap for a snug fit when connecting trays. Use suitable ABS adhesive to attach the male end overlap firmly on top of the female end.

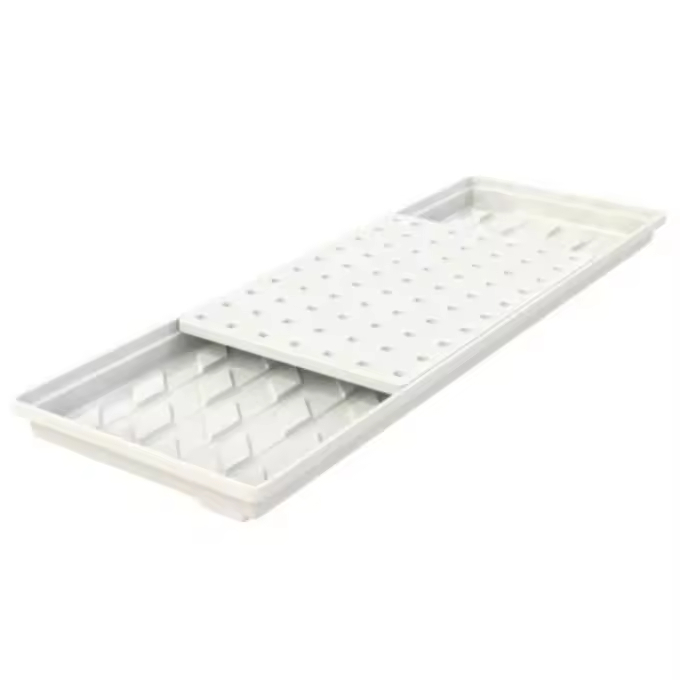

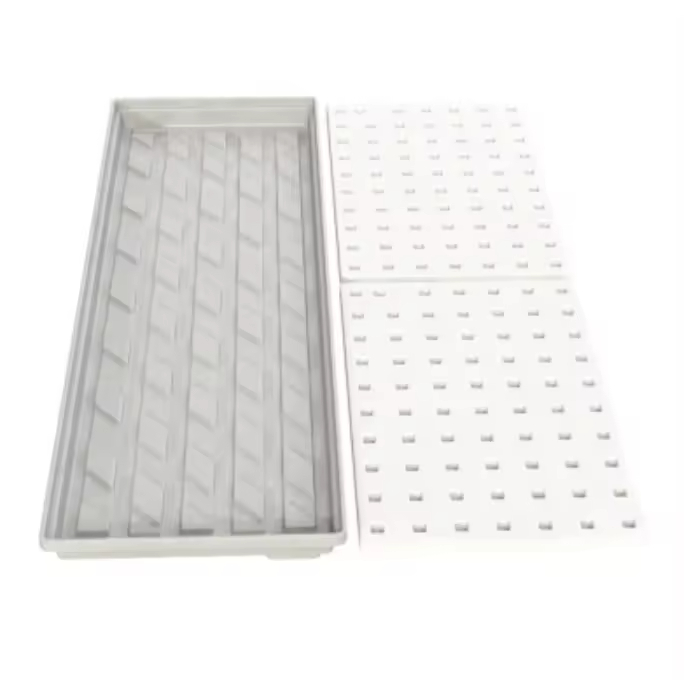

The lids are fit on the tray directly, also made from rigid ABS plastic material, so it can hold the plants well. and its planting holes shape, size, depth, QTY etc. all can be customized based on clients different planting projects. We can provide free design service!!!


Item

Bottom Trays

Planting Lids

Material

ABS Plastic

ABS Plasitc

Width

200mm - 2000mm available

Fit the tray

Length

Any length you want

fit the whole row

Colors

White Black Grey Green etc, customized

Thickness

2mm - 8mm

Service

ODM/OEM and free design service

Installation

ABS glue (we suggest to conduct adhesive and water leakage tests before gluing in batches)

Put on the tray direftly





Item
OD
ID
Material
3'x6'x6.3"
1004x1924x160mm
914x1828x150mm
HIPS/ABS
4'x4'x6.3"
1220x1220x160mm
1130x1130x150mm
HIPS/ABS
4'x6'x6.3"
1220x1830x160mm
1130x1740x150mm
HIPS/ABS
4'x8'x6.3"
1220x2440x160mm
1130x2350x150mm
HIPS/ABS

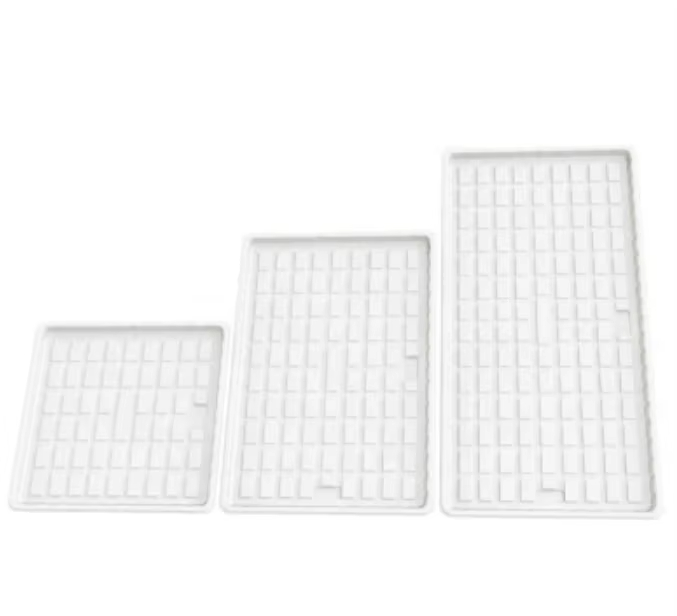

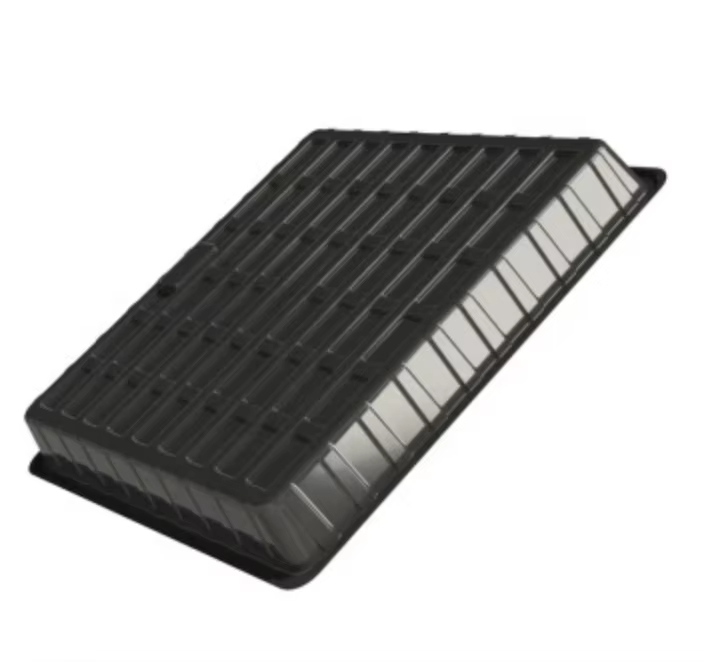

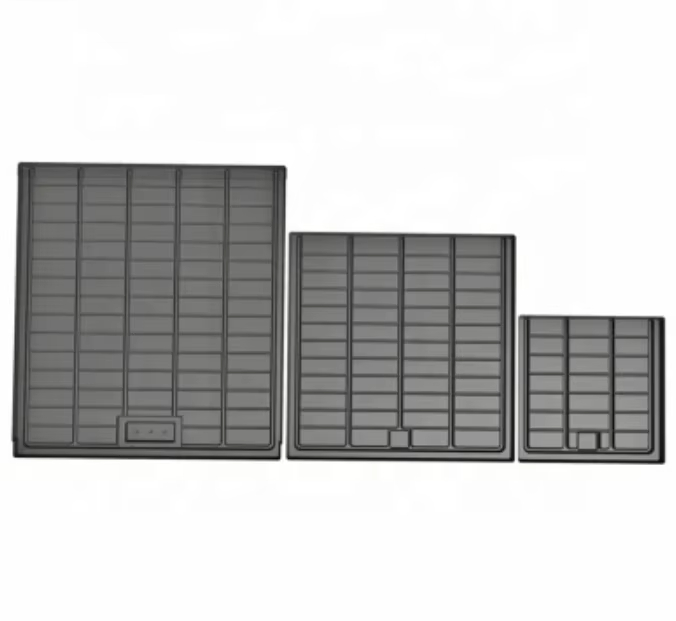

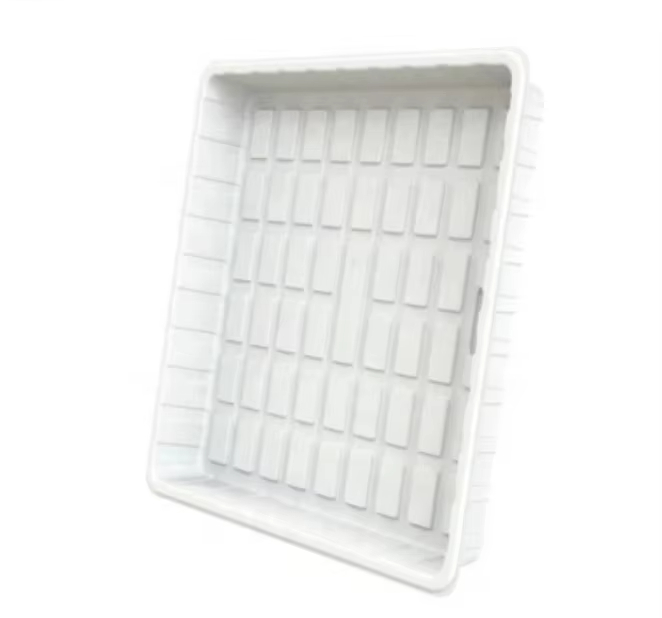

Hydroponic Tray Advantages

* Various sizes are available, and support customization


* The special rib design makes hydroponic tray load better and stronger

* Virgin HIPS and ABS plastic material, more durable than trays made from recycled material

* Multiple drainage positions provides more setting choice

* Rounded corners and smooth inner wall, easy to flow and clean


ODM/OEM Available !!!

>> If you have 3D drawings, we can help check and improve, then make molds based on it.

>> If you have actual samples, we can help you copy it for free.

>> If you have 2D drawing or photos, we can help you make 3D drawings for free.

>> If you only have ideas, we can help you draw out for free.
