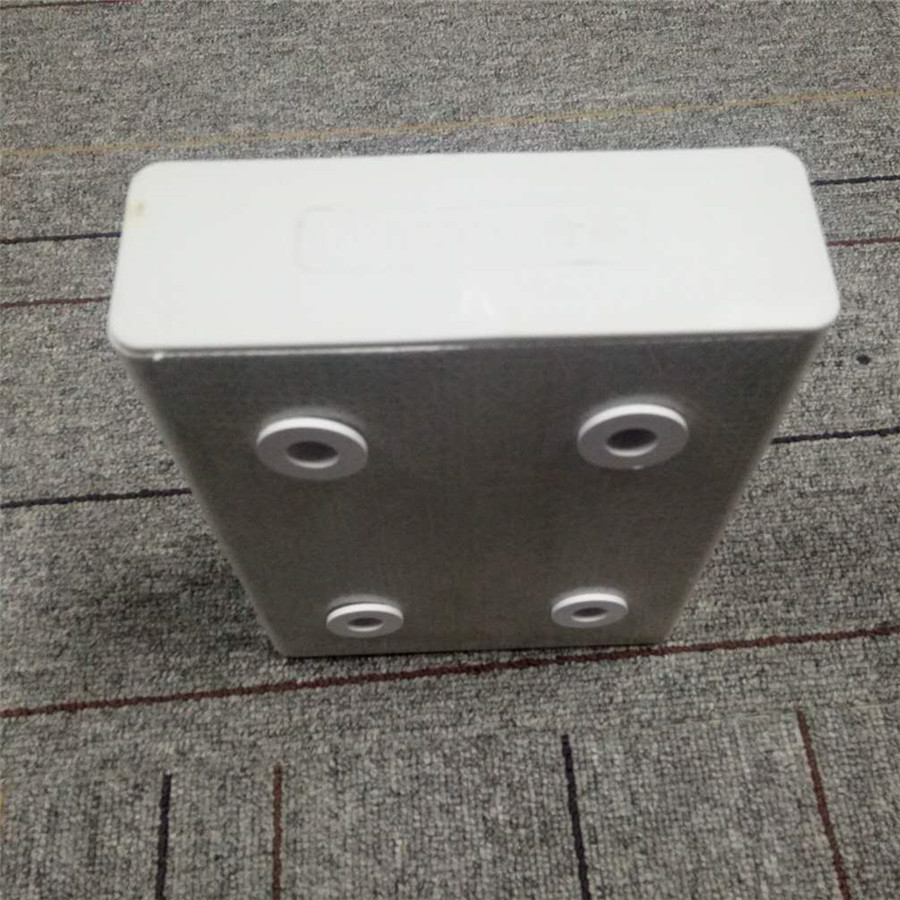

China Light Weight Fiber Glass Reinforced Polymer GRP FRP Rafter For Chemical Industry Building
- Material: Fiberglass + Polyester
- Process: Pultrusion
- Type: Tube, Pipe, Channel, Beam or customized
- Wall thickness: 4mm or customized
- Color: Yellow, White, Grey, Green, Black or any
- Density: 1.9g/cm3
- Product: China Light Weight Fiber Glass Reinforced Polymer GRP FRP Rafter For Chemical Industry Building
China Light Weight Fiber Glass Reinforced Polymer GRP FRP Rafter For Chemical Industry Building
A. FRP Roof Purlin / Rafter Introduction
FRP Roof Purlin made from Fiberglass reinforced Plastic by pulextruded processing.
Most competitive characters of our FRP purlin / Rafter:
A. The axial strength of our FRP purlin is 290Mpa which has reached the strength of steel.
B. With excellent anti-corrosion and anti-aging performance, no other materials can replace it under the same "performance-price ratio ".
B. With excellent anti-corrosion and anti-aging performance, no other materials can replace it under the same "performance-price ratio ".
C. We promise 15 years warranty
FRP Purlin is most valuable innovation in recent years. As a leading company in China composite industry, Fore core competitive advantages are technologically innovative capability, product customization to suit market demands, and the industrialization of technological products. Fore owns a reputation as "A Chinese Manufacturer which own Europen Technological Level" awarded by foreign engineer in this filed.
B. FRP Roof Purlin / Rafter Features
· Light Weight - Less Density - 20% Of Steel; 70% Of Aluminum · High Strength And Insulating Values
· High Corrosion Resistance · UV Resistant Inhibited
· Variety Of Colors For Choice · Superior Dimensional Stability
· Wide Temperature Range Use · Consistent Cross Section
· Excellent Structural Properties · Environmentally Safe
· Non-Conductive Thermally And Electrically · Dimensional Stability
· Non-Magnetic Electromagnetic · Ease Of Fabrication & Installation
· High Corrosion Resistance · UV Resistant Inhibited
· Variety Of Colors For Choice · Superior Dimensional Stability
· Wide Temperature Range Use · Consistent Cross Section
· Excellent Structural Properties · Environmentally Safe
· Non-Conductive Thermally And Electrically · Dimensional Stability
· Non-Magnetic Electromagnetic · Ease Of Fabrication & Installation

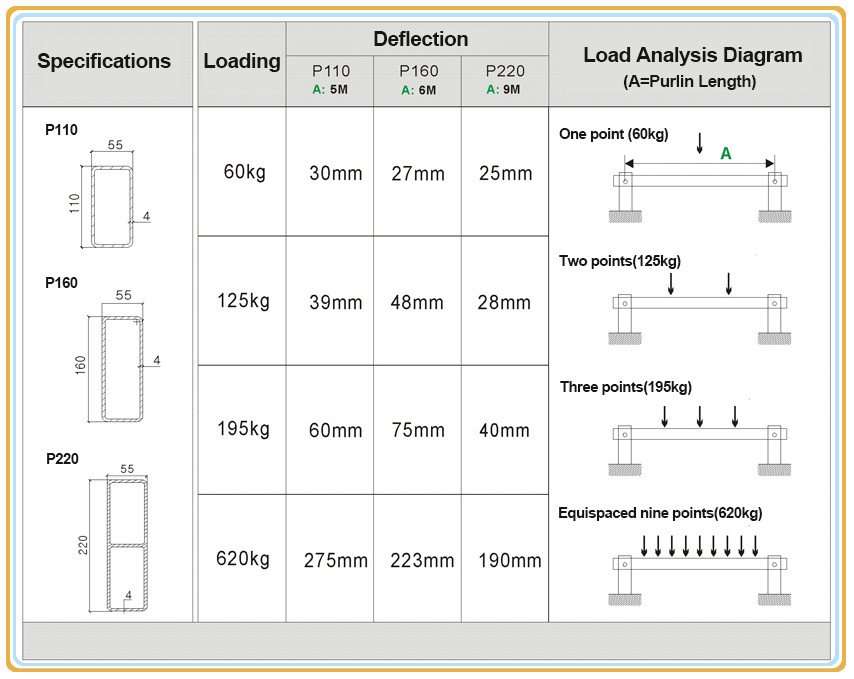

C. FRP Roof Purlin / Rafter Specifications & Technical Data
Foreth have tested repeatedly and seriously to verify the data above, but which is not our guarantee of the specific application of FRP purlin. All technical datas should base on the specific requirement and condition.

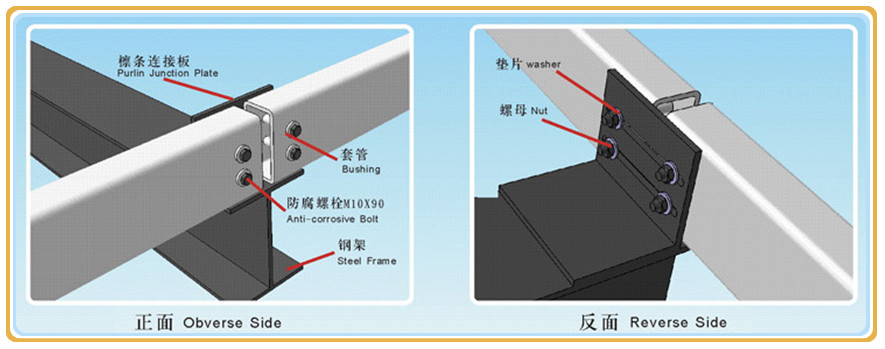

D. Installation of FRP Roof Purlin / Rafter
1. Drill the purlin for installing bushings
2. Install the bushings(which provide by FORE)
3. Use anti-corrosive bolt, the junction plate, washer and nut to fasten FRP Purlin
E. Other FRP Profiles
| FRP Profiles Types | |||
| FRP Rod | FRP Strip | FRP Round Pipe | FRP Square Tube |
 |
 |
 |
 |
| FRP L Angle | FRP C Channel | FRP I/H Beam | FRP Customized Profiles |
 |
 |
 |
 |
F. Package & Delivery
| Package | Delivery |
| 1.Packed on plywood pallet | 1. Samples: 2-3 dyas |
| 2.Packed in plywood case | 2. Mass production: 7-15 working days after receive payment |
| 3.Load in container directly | 3. Delivery terms: EXW, FOB. CIF, DDP all can be accepted |
G. FRP Profiles Applications
· Electrical fields: cable bridge, ladder, stents, insulation ladder, the transformer block bar, the motor wedge, lampposts,
the third rail circuit board, fiber optic cable core materials.
· Chemical & anti-corrosion areas: FRP sucker rod, cooling tower support, offshore oil production equipment channels,
walking grille, staircase handrails and stents, chemical corrosion environment of the structural support.
· Entertainment areas: fishing rods, rods, umbrellas skeleton, flagpoles, lampposts, railings, handrails, stairs, radio
antennas, marinas and so on.
· Public transport areas: barriers on both sides of the highway barrier, road signs, pedestrian bridge, sound insulation walls
refrigerated trucks and other components.
· Agricultural areas: livestock rings, poultry houses with wall fence, greenhouse structure, support components, rattan shed,
water trough etc.
H. Factory Profiles
Foreth Industrial Co., Ltd is a fast-developing enterprise which is mainly specialized in FRP(fiber reinforced plastic) products, and operates in a global marketplace. Foreth team supply clients with FRP sheets, FRP sandwich panels FRP gratings, composite manhole covers,FRP profiles, FRP roofing sheets etc,with a wide range of applications across the construction,marine,off highway,rail,water treatment and engineering industries.
Additionally, we have rich experience in exporting and supplying high quality products and excellent service.
Feel free to contact us if any query you may have and we will be happy to assist you.We hope to be your reliable supplier & stable partner by establishing long time as well as joyful business relationship with your esteemed company!
Additionally, we have rich experience in exporting and supplying high quality products and excellent service.
Feel free to contact us if any query you may have and we will be happy to assist you.We hope to be your reliable supplier & stable partner by establishing long time as well as joyful business relationship with your esteemed company!
G. Mold list of our FRP Profiles
China Light Weight Fiber Glass Reinforced Polymer GRP FRP Rafter For Chemical Industry Building
